IGF Multifunction Bagging Machine

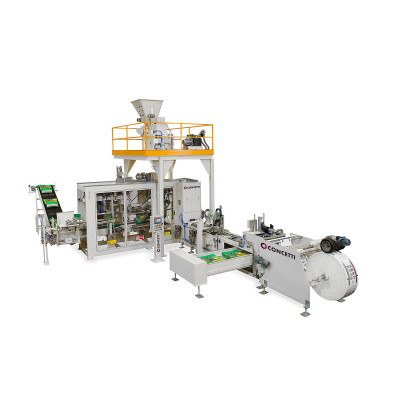

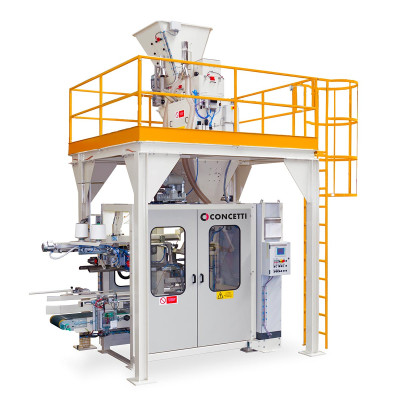

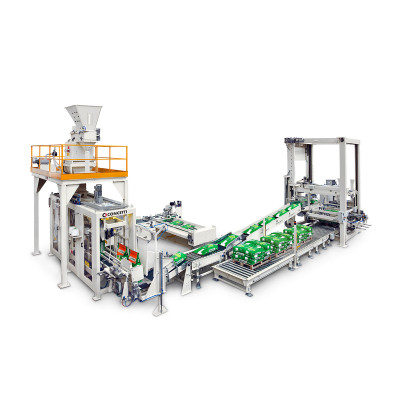

IGF Automatic Bagging Machine

The IGF is a fully automatic bagging system designed specifically for filling and closing readymade open-mouth bags.
Because of its particularly small and compact dimensions, it can be installed in any existing production environment.
The IGF bagging lines are highly versatile: the self-adjusting features of the various components of the system allow the same machine to fill and perfectly close flat or gusseted bags in a range of 2-50 kg, made of paper, PE or PP raffia.

THE IGF CAN BE EQUIPPED WITH NUMEROUS BAG-CLOSING PROCESSES:
SIMPLE SEWN CLOSING
STITCHING AND APPLICATION OF STRING
STITCHING AND APPLICATION OF CREPE TAPE
STITCHING AND APPLICATION OF ADHESIVE TAPE
HOT-MELT CLOSING
HEAT-SEALING
PINCH-TOP CLOSING


The IGF can be coupled with either net or gross weighers using gravity, belt or screw-feed systems, depending on the product to be bagged.

To minimize setup times, the PLC-assisted format change is fully automatic - in just 90 seconds - without any operator intervention whatsoever.
Our IGF comes complete with inspection doors and safety devices compliant with the current EC regulations.

OPTIONS

  • Comb system to vibrate the bag bottom during filling
  • Upper-level bag-vibrating system using the bag-holder
  • Label device for computer labels printed in real time or pre-printed labels
  • Ticket machine for self-adhesive labels
  • Ticket machine for labels to be sewn on the upper bag edge
  • Stainless steel for parts in contact with aggressive products
  • Dust hoods
  • Deaeration probes for aerated products.

Technical Specifications

Max. speed 600 b/h, depending on the characteristics of the product to be bagged.
Weighing range 2-50 kg
Bag-storage trolley capacity 50/600
Operating system PLC
Power supply 380 V- 50 Hz
Compressed-air consumption 70 Nl/cycle
Installed power:
with motorized trolley  11 Kw
with trolley and infeeder  14 Kw
with manual trolley  10 Kw
THE IGF CAN BE EQUIPPED WITH NUMEROUS BAG-CLOSING PROCESSES

SIMPLE SEWN CLOSING
STITCHING AND APPLICATION OF STRING
STITCHING AND APPLICATION OF CREPE TAPE
STITCHING AND APPLICATION OF ADHESIVE TAPE
HOT-MELT CLOSING
HEAT-SEALING
PINCH-TOP CLOSING

BAG CHARACTERISTICS
Bag type Readymade open-mouth
Shape Flat bags, with or without handle, cushion, with sewn bottom, sealed or glued (pinch bottom).
Flat bags, with or without handle, cross bottom.
Gusseted bags, with or without handle, sewn bottom, square, sealed or glued (pinch bottom)

Flat bag dimensions

Width:  from 350 to 600 mm
 or from 300 to 500 mm , depending on type of bag-holder user
Length: from 550 to 1100 mm
Gusseted bag dimensions Width:  from 250 to 450 mm
Length:  from 550 to 1100 mm
Gusset from 50 to 70 mm   or
from 50 to 100 mm with individual bag infeeder
Bag material Paper
Coated paper
Paper with PE liner
Paper with aluminum liner
PE
PP raffia
Coated raffia
Raffia with PE liner
Max. speed 900 b/h, depending on the characteristics of The product to be bagged.
Weighing range 2-50 kg
Bag-storage trolley capacity 50/600
Operating system PLC
Power supply 380 V- 50 Hz
Compressed-air consumption 70 Nl/cycle
Installed power:
with motorized trolley 11 Kw
with trolley and infeeder 14 Kw
with manual trolley 10 Kw
THE IGF CAN BE EQUIPPED WITH NUMEROUS BAG-CLOSING PROCESSES

SIMPLE SEWN CLOSING
STITCHING AND APPLICATION OF STRING
STITCHING AND APPLICATION OF CREPE TAPE
STITCHING AND APPLICATION OF ADHESIVE TAPE
HOT-MELT CLOSING
HEAT-SEALING
PINCH-TOP CLOSING

BAG CHARACTERISTICS
Bag type Readymade open-mouth
Shape Flat bags, with or without handle, cushion, with sewn bottom, sealed or glued (pinch bottom).
Flat bags, with or without handle, cross bottom.
Gusseted bags, with or without handle, sewn bottom, square, sealed or glued (pinch bottom)

Flat bag dimensions

Width: from 350 to 600 mm
or from 300 to 500 mm , depending on type of bag-holder user
Length: from 550 to 1100 mm
Gusseted bag dimensions Width: from 250 to 450 mm
Length: from 550 to 1100 mm
Gusset from 50 to 70 mm or
from 50 to 100 mm with individual bag infeeder
Bag material Paper
Coated paper
Paper with PE liner
Paper with aluminum liner
PE
PP raffia
Coated raffia
Raffia with PE liner
Max. speed 1000 b/h, depending on the characteristics of the product to be bagged.
Weighing range 5-50 kg
Bag-storage trolley capacity 150/600
Operating system PLC
Power supply 380 V- 50 Hz
Compressed-air consumption 70 Nl/cycle
Installed power:
with motorized trolley  14 Kw
with trolley and infeeder  18 Kw
THE IGF CAN BE EQUIPPED WITH NUMEROUS BAG-CLOSING PROCESSES

SIMPLE SEWN CLOSING
STITCHING AND APPLICATION OF STRING
STITCHING AND APPLICATION OF CREPE TAPE
STITCHING AND APPLICATION OF ADHESIVE TAPE
HOT-MELT CLOSING
HEAT-SEALING
PINCH-TOP CLOSING

BAG CHARACTERISTICS
Bag type Readymade open-mouth
Shape Flat bags, with or without handle, cushion, with sewn bottom, sealed or glued (pinch bottom).
Flat bags, with or without handle, cross bottom.
Gusseted bags, with or without handle, sewn bottom, square, sealed or glued (pinch bottom).

Flat bag dimensions

Width:  from 350 to 600 mm
 or from 300 to 500 mm , depending on type of bag-holder user
Length: from 550 to 1100 mm
Gusseted bag dimensions Width:  from 250 to 450 mm
Length:  from 550 to 1100 mm:
Gusset from 50 to 70 mm
from 50 to 100 mm with individual bag infeeder
Bag material Paper
Coated paper
Paper with PE liner
Paper with aluminum liner
PE
PP raffia
Coated raffia
Raffia with PE liner
Max. speed 1200 b/h, depending on the characteristics of the product to be bagged.
Weighing range 2-50 kg
Bag-storage trolley capacity 150/600
Operating system PLC
Power supply 380 V- 50 Hz
Compressed-air consumption 70 Nl/cycle
Installed power:
with motorized trolley 14 Kw
with trolley and infeeder 18 Kw
THE IGF CAN BE EQUIPPED WITH NUMEROUS BAG-CLOSING PROCESSES

SIMPLE SEWN CLOSING
STITCHING AND APPLICATION OF STRING
STITCHING AND APPLICATION OF CREPE TAPE
STITCHING AND APPLICATION OF ADHESIVE TAPE
HOT-MELT CLOSING
HEAT-SEALING
PINCH-TOP CLOSING

BAG CHARACTERISTICS
Bag type Readymade open-mouth
Shape Flat bags, with or without handle, cushion, with sewn bottom, sealed or glued (pinch bottom).
Flat bags, with or without handle, cross bottom.
Gusseted bags, with or without handle, sewn bottom, square, sealed or glued (pinch bottom).

Flat bag dimensions

Width: from 350 to 600 mm
or from 300 to 500 mm , depending on type of bag-holder user
Length: from 550 to 1100 mm
Gusseted bag dimensions Width: from 250 to 450 mm
Length: from 550 to 1100 mm:
Gusset from 50 to 70 mm
from 50 to 100 mm with individual bag infeeder
Bag material Paper
Coated paper
Paper with PE liner
Paper with aluminum liner
PE
PP raffia
Coated raffia
Raffia with PE liner

NOTE: The information listed in the chart is strictly indicative and will depend on the specific features of each machine.
