As part of its IGF line of machines, Concetti has also developed a semiautomatic bagging line to fill and close jute and PP raffia bags, using a system that permits optimum safety for the bagging operator.
In addition to jute and raffia, the machine can also handle paper, coated paper and PE bags.
The operator inserts the bag mouth onto a shaping device that gives it the proper shape for subsequent insertion on the product discharge outlet.
When the operator removes his hands from the danger zone of the machine, a mechanical arm picks the bag up from the shaping device and places it under the bag-holder.
The bag-mouth closing station follows. A safety device prevents the mechanical arm from being activated until the operator has left the danger zone around the machine.

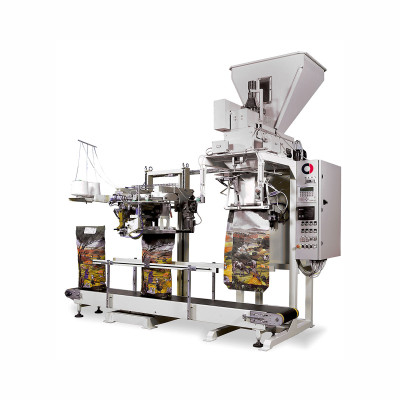

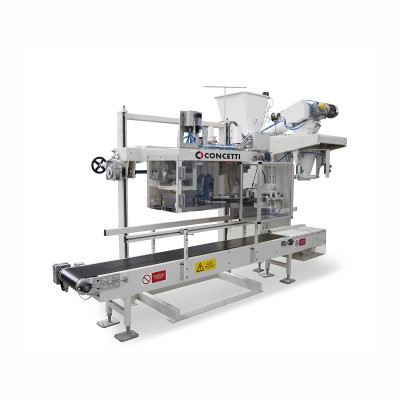

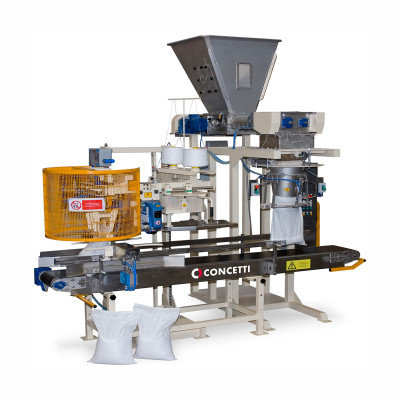

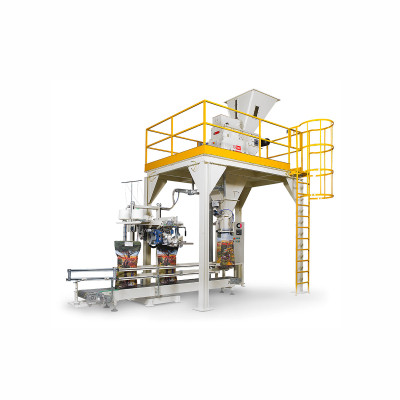

The semiautomatic IGF can be coupled with either net or gross weighers using gravity-, belt- or screw-feed systems, depending on the product to be bagged.
The semiautomatic IGF made by Concetti comes complete with safety devices compliant with the current EC regulations.
OPTIONS
| Max. speed | 500 - 600 b/h,, depending on the characteristics of the product to be bagged. |
| Weighing range | 25-50 kg |
| Operating system | PLC |
| Power supply | 380 V- 50 Hz |
| Compressed-air consumption | 50 Nl/cycle |
| Installed power: | 11 Kw |
| THE IGF CAN BE EQUIPPED WITH NUMEROUS BAG-CLOSING PROCESSES | |
|
SIMPLE SEWN CLOSING |
|
| BAG CHARACTERISTICS | |
| Bag type | Readymade open-mouth |
| Shape | Flat bags, with or without handle, cushion, with sewn bottom, sealed or glued (pinch bottom). Flat bags, with or without handle, cross bottom. Gusseted bags, with or without handle, sewn bottom, square, sealed or glued (pinch bottom). |
| Flat bag dimensions | Width: from 350 to 600 mm or from 300 to 500 mm , depending on type of bag-holder user Length: from 550 to 1100 mm |
| Gusseted bag dimensions | Width: from 250 to 450 mm Length: from 550 to 1100 mm: Gusset From 50 to 70 mm from 50 to 100 mm with individual bag infeeder |
| Bag material |
Paper |
NOTE: The information listed in the chart is strictly indicative and will depend on the specific features of each machine.
